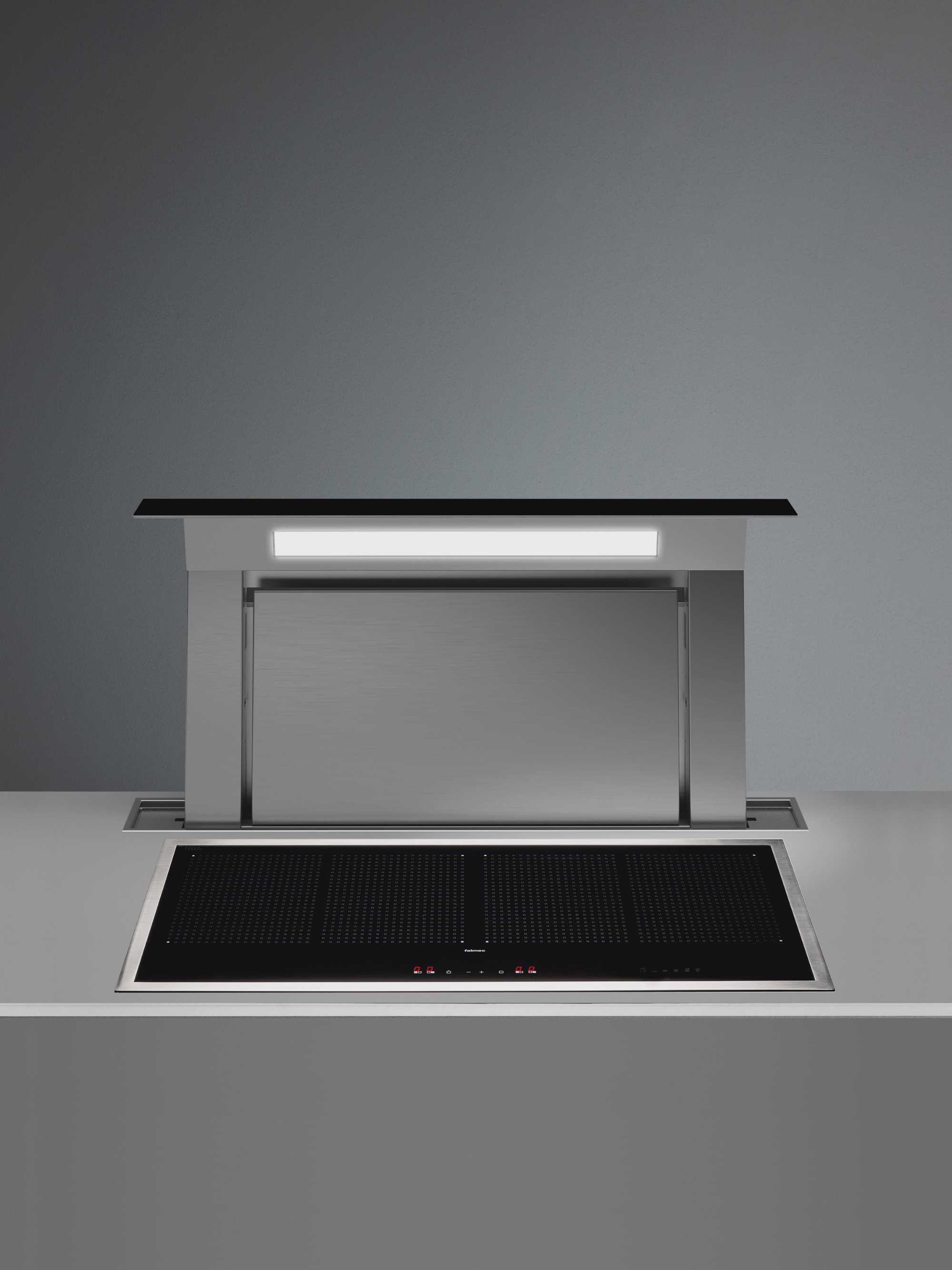

Falmec Worktop Down-Draft Hood Series
Effortlessly concealed when off and seamlessly rising at the touch of a button, the Falmec Worktop Down-Draft series brings professional-grade extraction and refined Italian design to your kitchen. Available in two widths (90 cm and 120 cm) and three finishes (Stainless Steel, Black Glass, White Glass), these motorized hoods capture cooking vapors precisely at source, while perimeter suction and whisper-quiet operation maintain a healthy, odor-free environment.

🌀 Performance & Airflow

• Four speed settings + Boost function

• Airflow (ducted mode, remote motor 950 m³/h): 330–730 m³/h (90 cm) | 330–730 m³/h (120 cm)

• Perimeter suction reduces turbulence and noise

💡 Lighting & Control

• LED strip (14 W, 5 500 K) evenly illuminates the cooktop area

• Touch-control panel with 24-hour automatic recirculation option

• Optional remote control for convenient operation

💧 Filtration & Maintenance

• 2× “Top” metal grease filters (90 cm: 254×216 mm; 120 cm: 404×216 mm), removable & dishwasher-safe

• Optional regenerable Carbon.Zeo under-base filter kit (KACL.930)

🛠 Design & Installation

• Installation type: Worktop-integrated downdraft

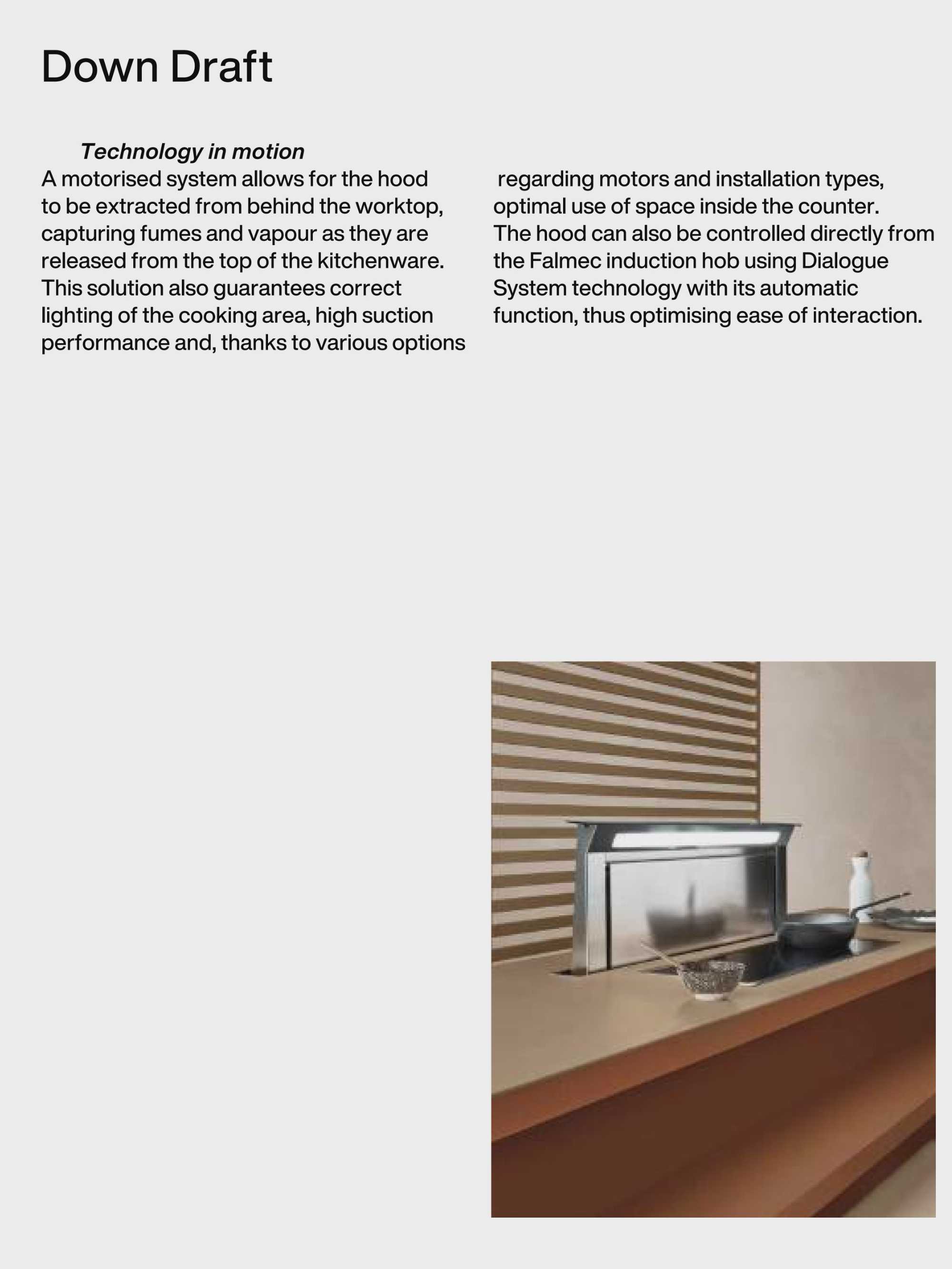

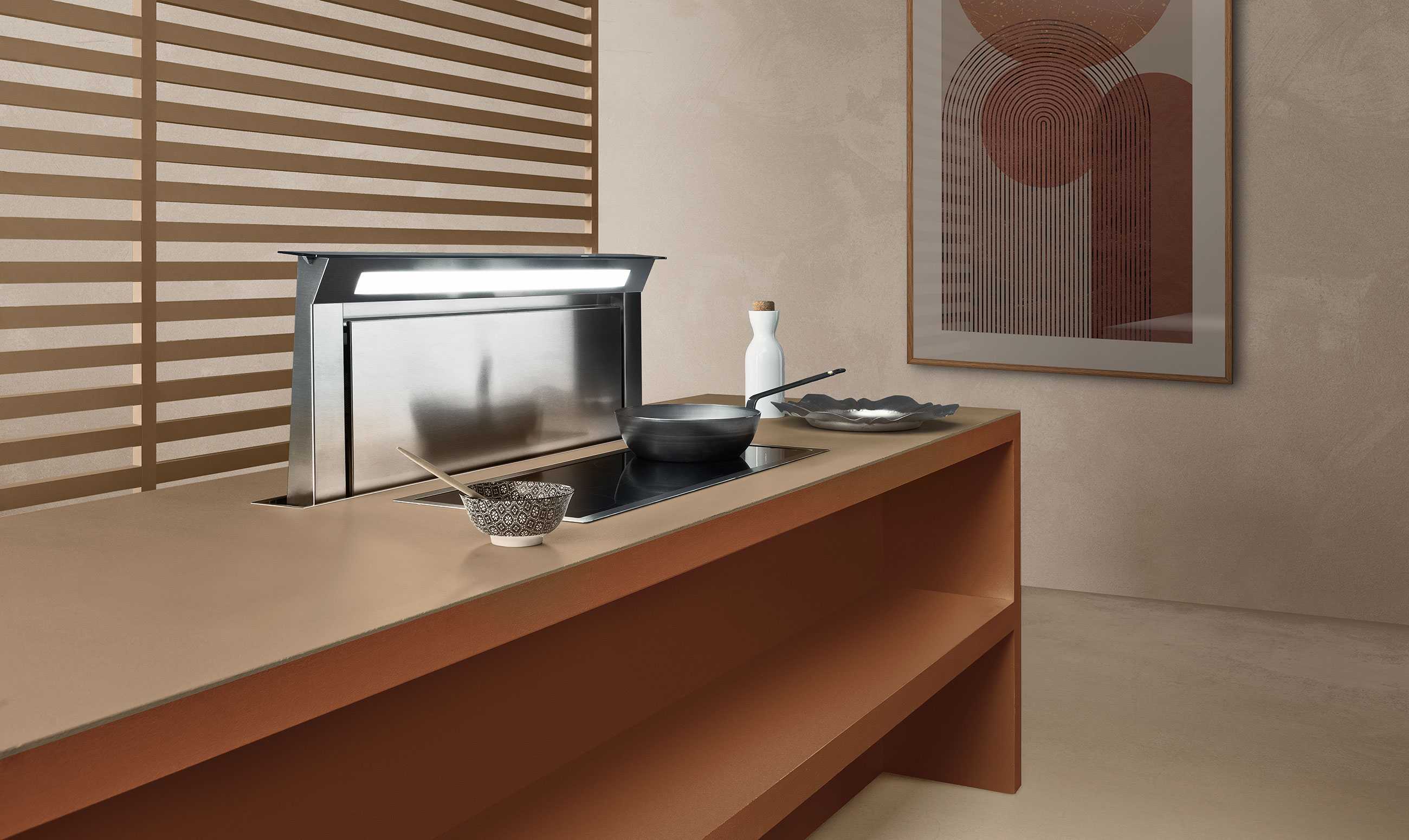

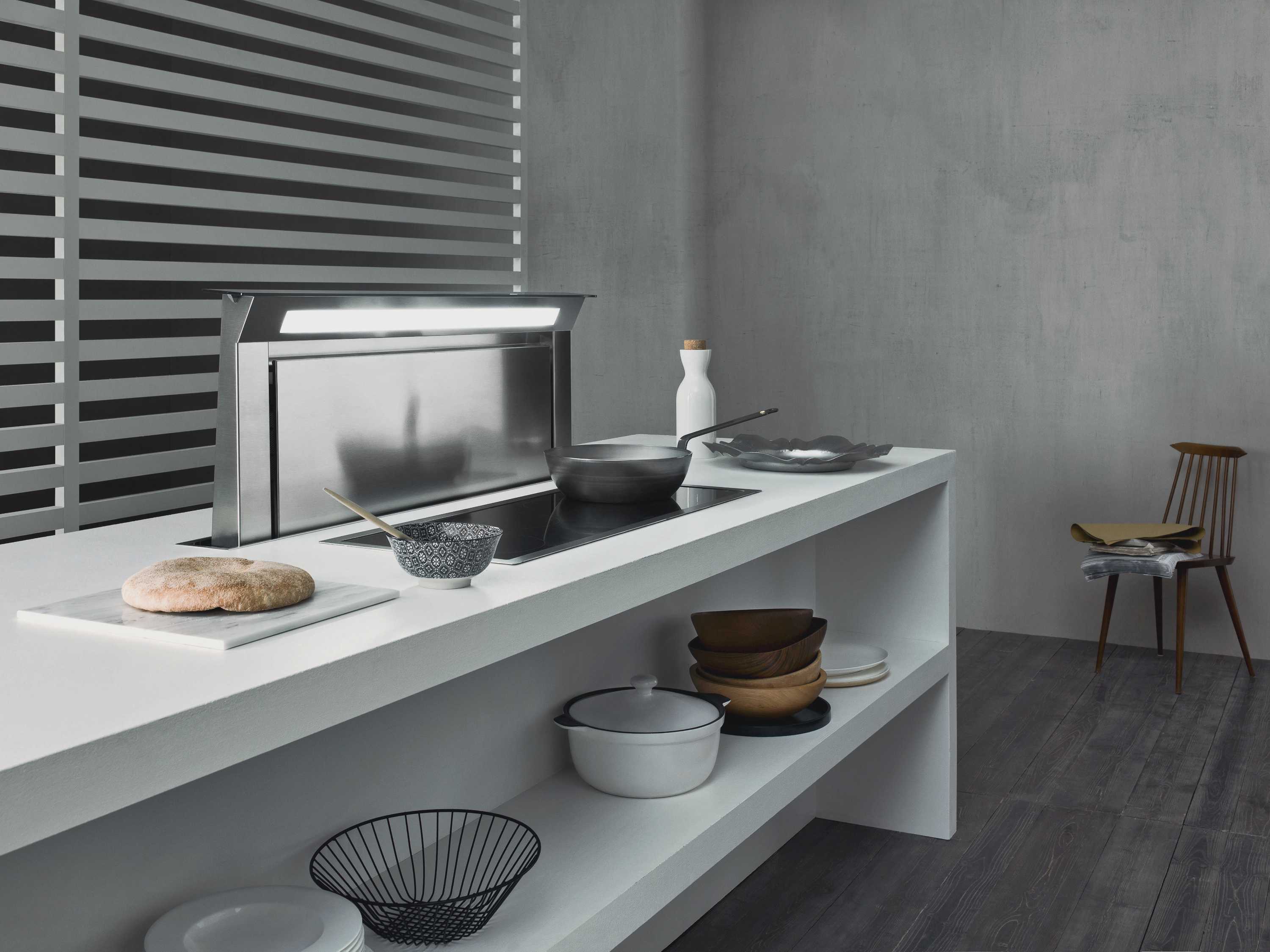

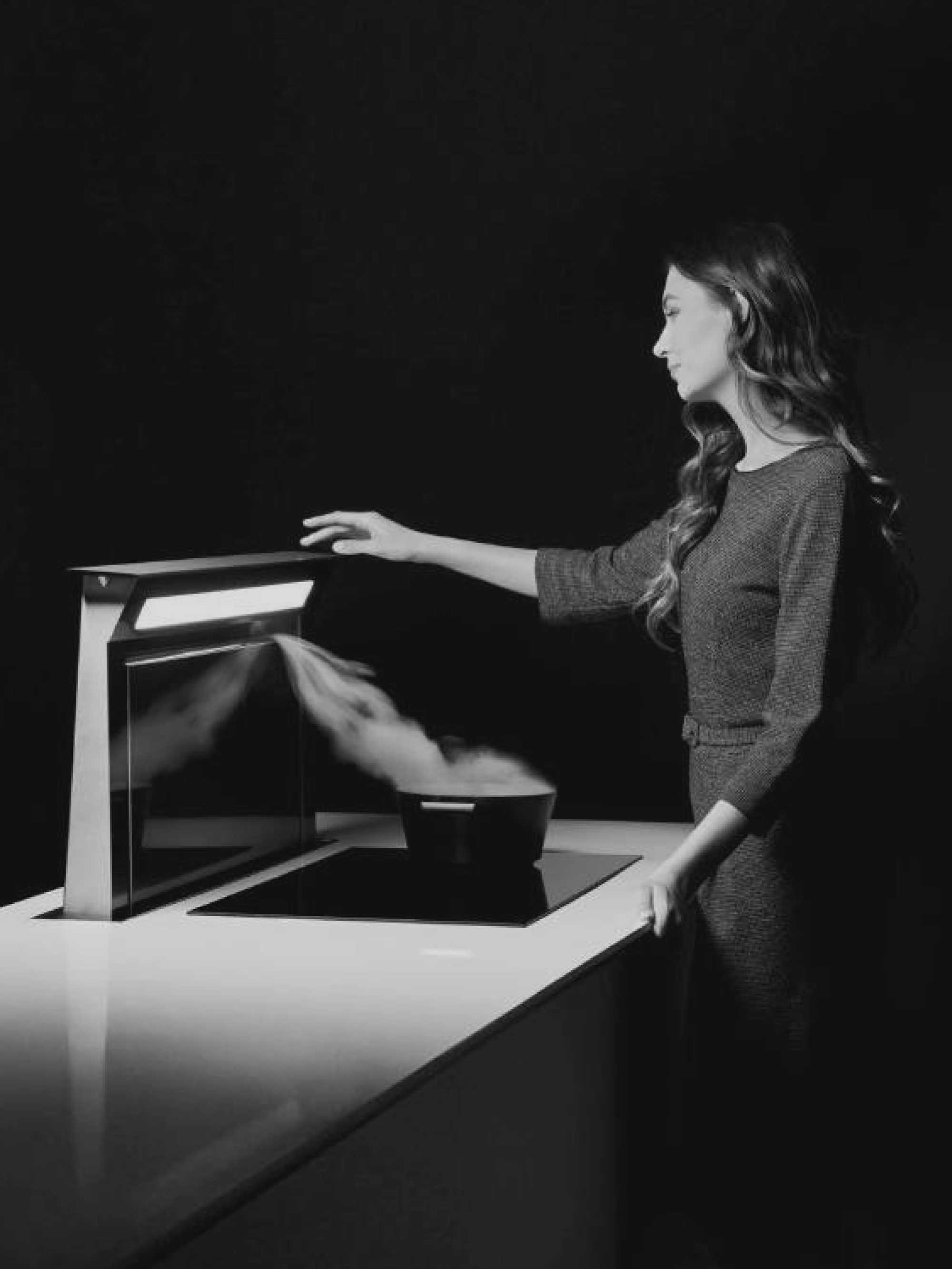

• Fully retractable hood module (activates behind the hob)

• Minimum clearance from cooktop: 60 mm

🧰 What’s Included

• Hood module (pre-assembled)

• 2× metal grease filters

• Installation template & hardware

• User manual

✅ Product Highlights

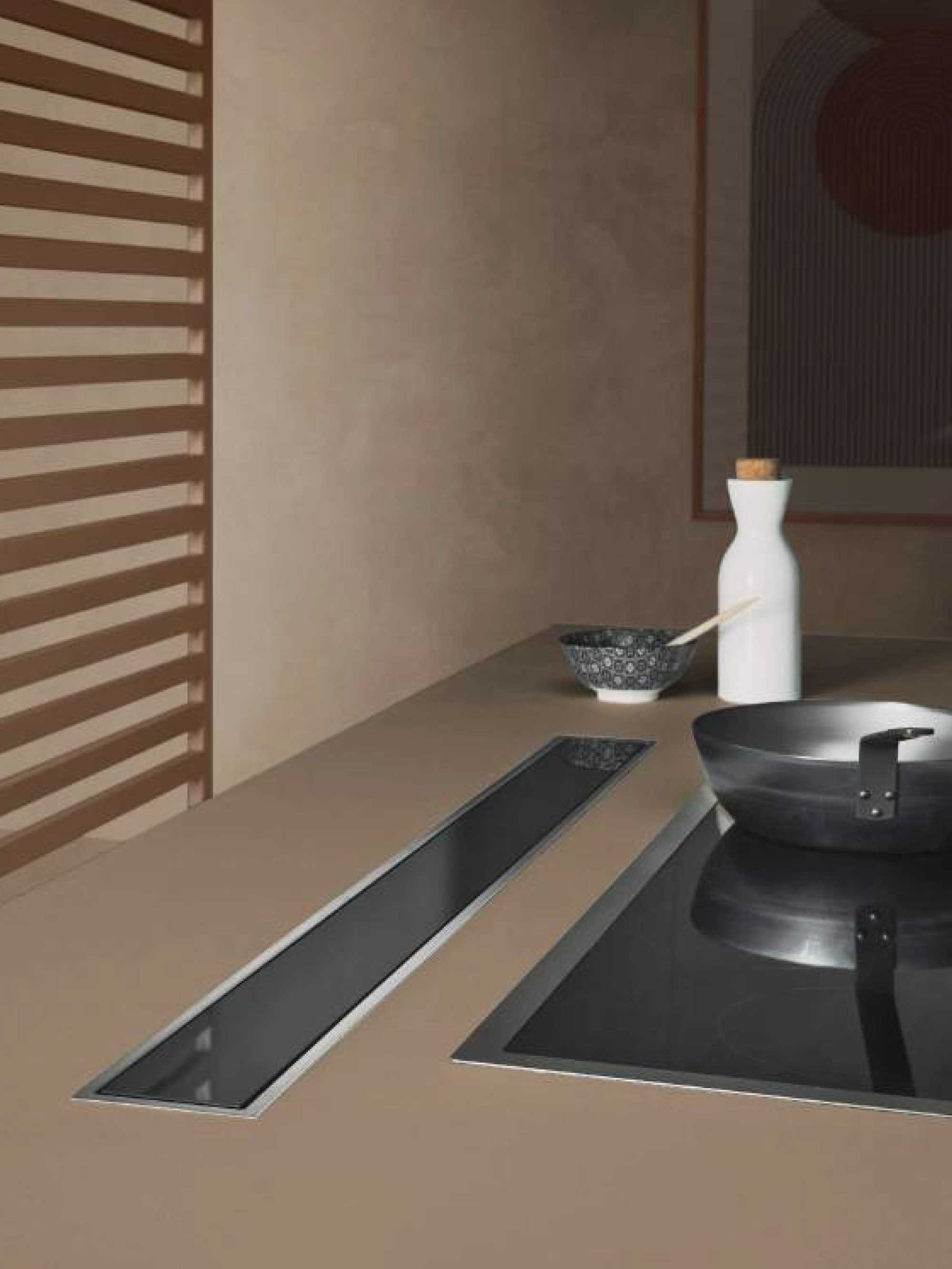

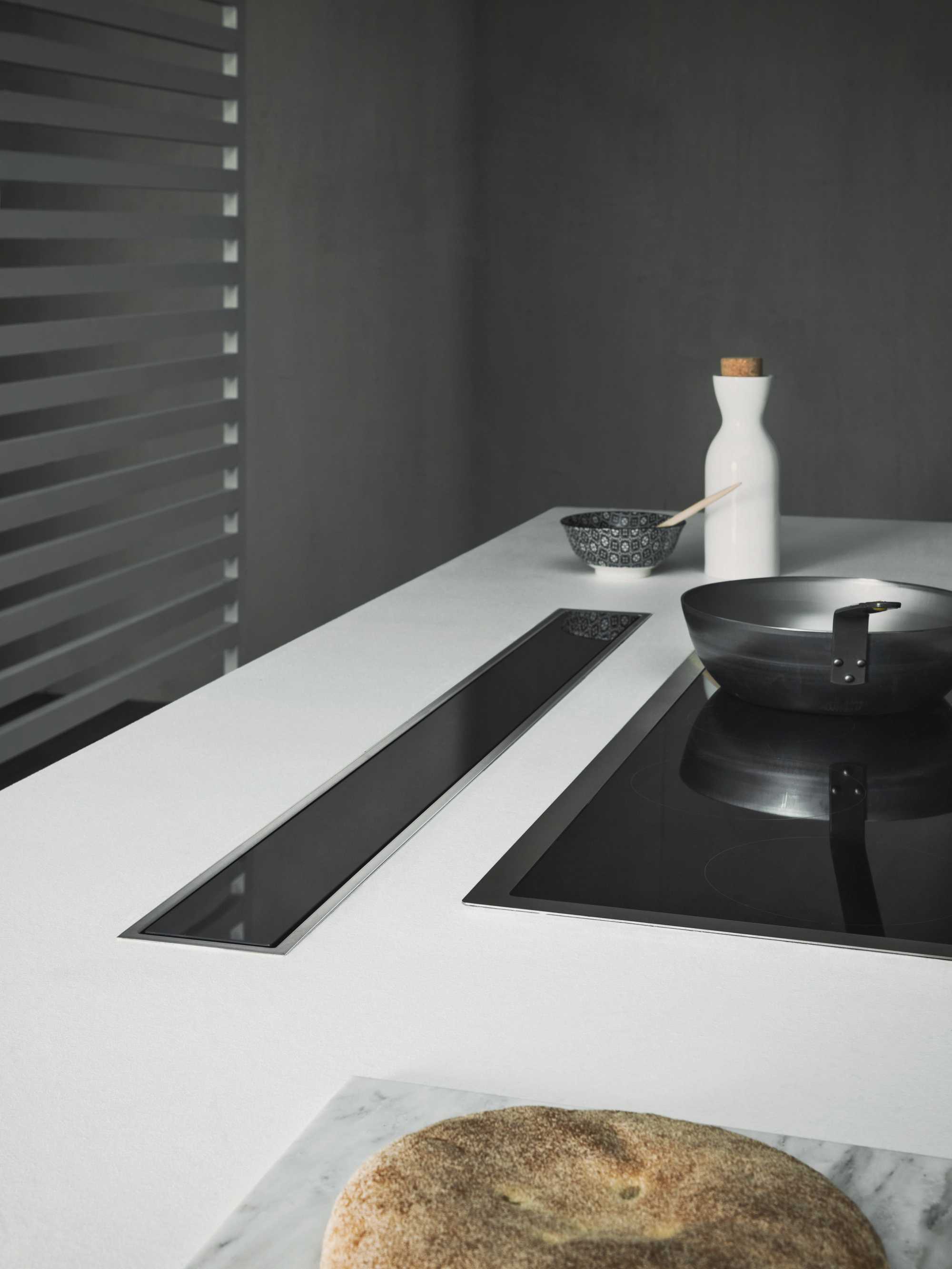

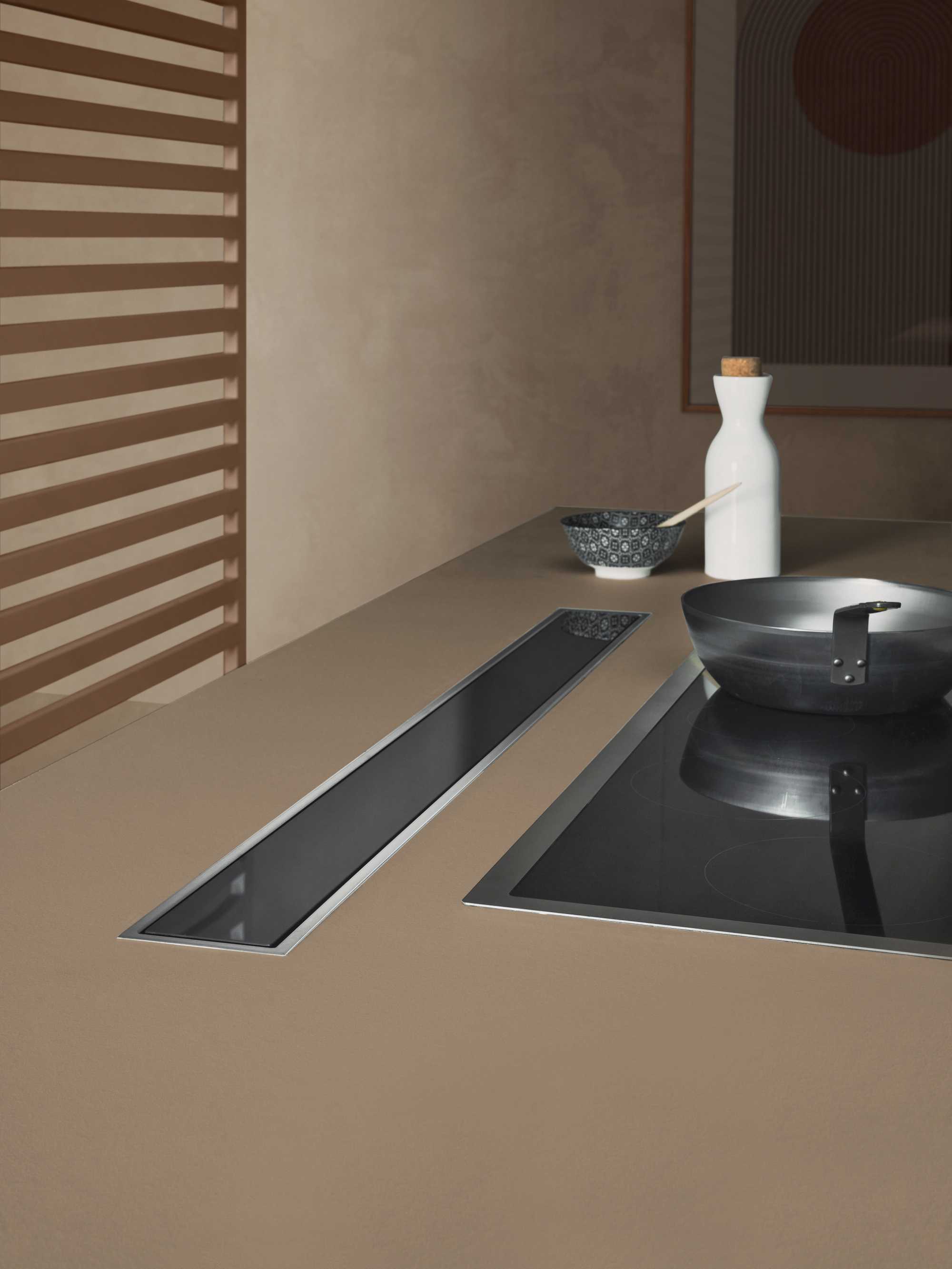

• Invisible profile when off, blends with countertop

• Perimeter suction for maximum capture efficiency

• Energy-efficient LED lighting

• Multiple motor options (600–1 300 m³/h) to suit ducted or recirculating setups

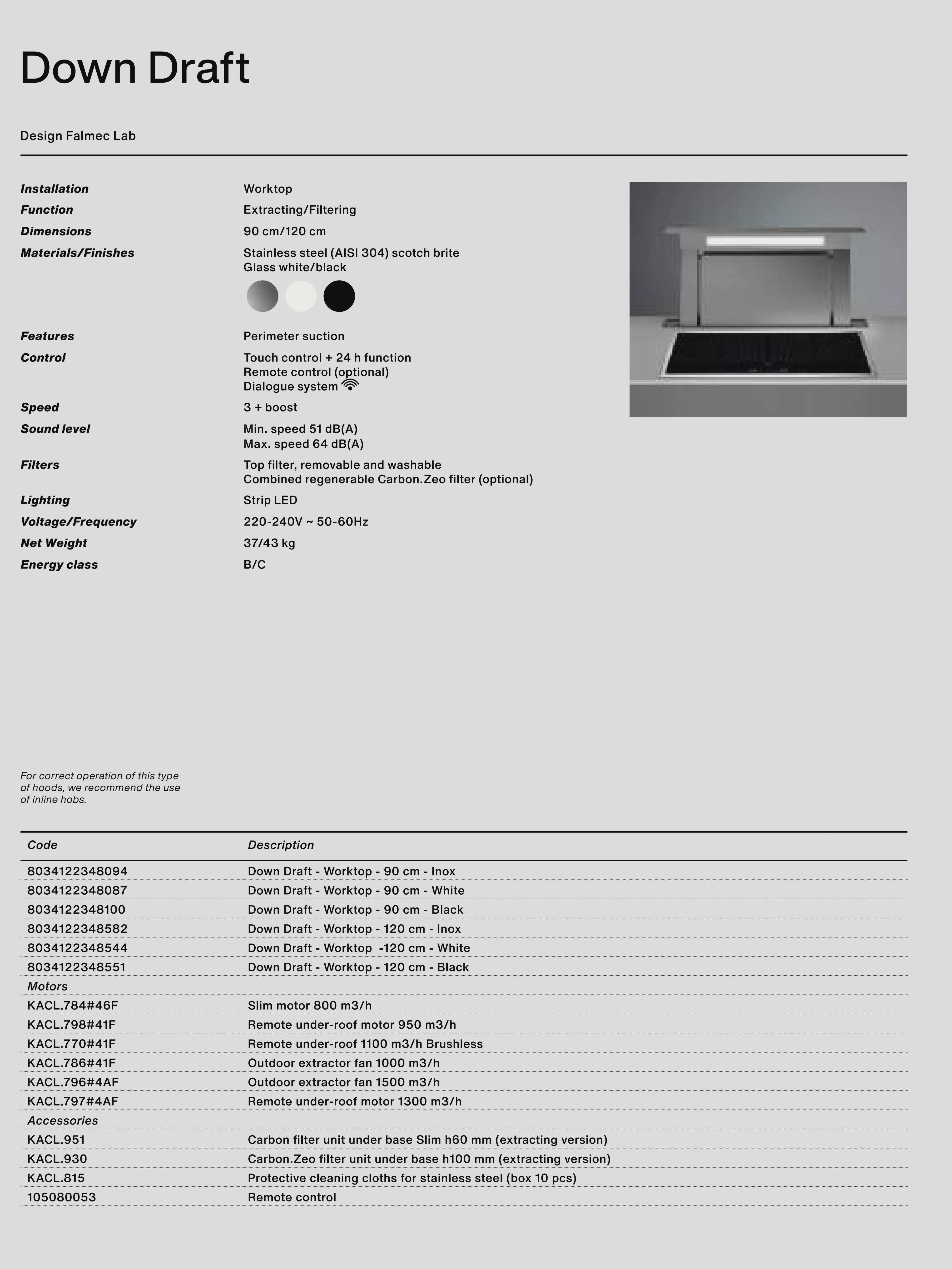

📏 Technical Specifications

Model (EAN)	Width	Finish	Control	Speeds	Net Weight
8034122348094	90 cm	Stainless Steel (AISI 304)	Touch + Remote (opt)	4+Boost	37 kg
8034122348100	90 cm	Black Tempered Glass	Touch + Remote (opt)	4+Boost	37 kg
8034122348551	120 cm	Black Tempered Glass	Touch + Remote (opt)	4+Boost	43.2 kg
8034122348582	120 cm	Stainless Steel (AISI 304)	Touch + Remote (opt)	4+Boost	44 kg

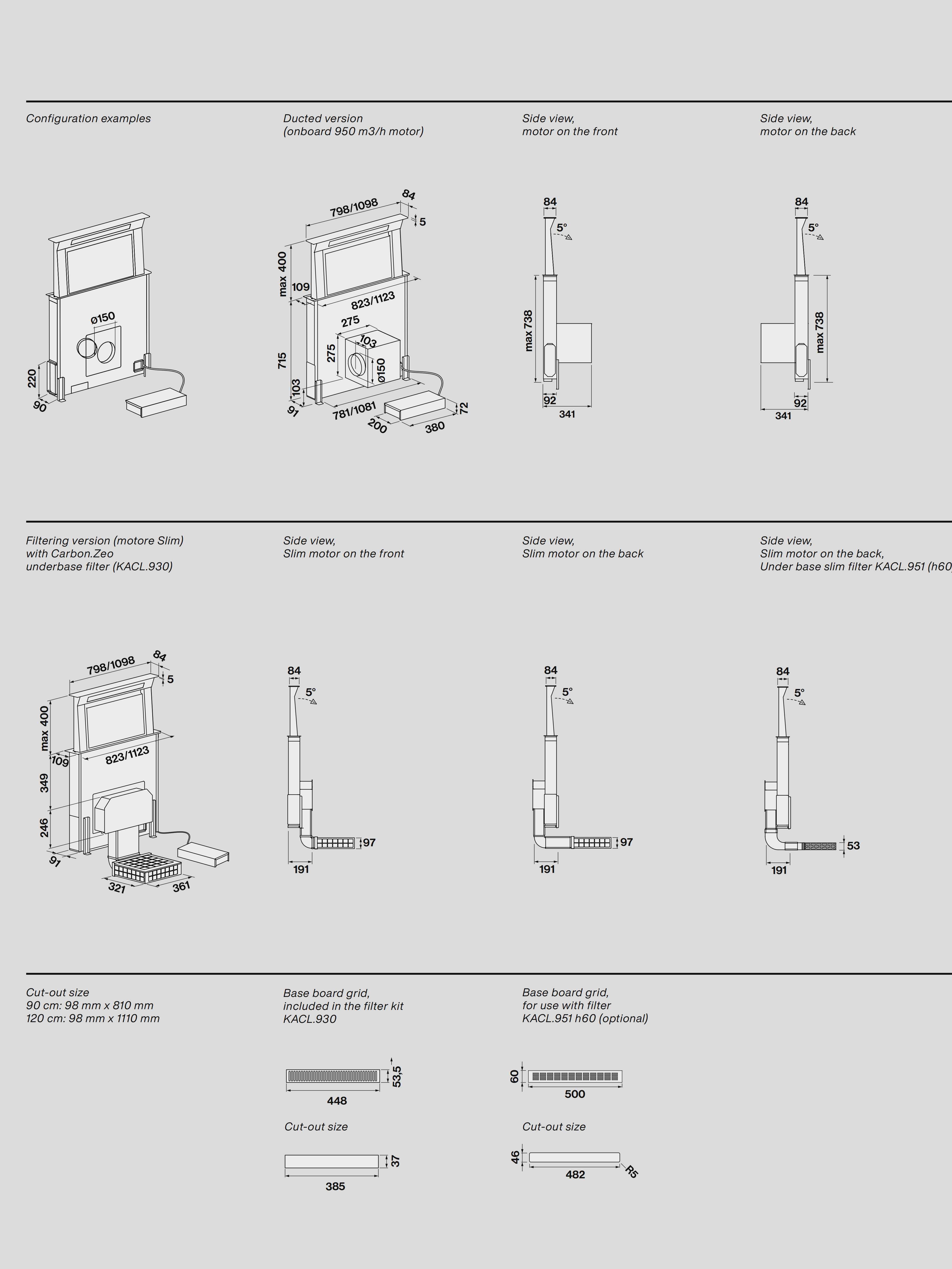

“Cut-out dimensions vary by motor option; refer to the installation guide for precise measurements.”

❓ Frequently Asked Questions

1. Can I use these hoods in recirculating mode?
   Yes—simply install the optional Carbon.Zeo filter kit (KACL.930) and select the “24 h” recirculation function.

2. Are the motors included?
   Motors are sold separately; you can choose remote or slim-profile motors ranging from 600 to 1 300 m³/h.

3. How often should I clean the filters?
   Metal filters should be cleaned every 1–2 months (or more frequently under heavy cooking conditions). Carbon filters regenerate indefinitely—no replacement needed.

4. What’s the minimum countertop thickness?
   The module fits standard 30–40 mm worktops; verify thickness range in the installation manual.

5. Is there a noise difference between ducted and recirculating modes?
   Noise levels vary by motor: in ducted mode, 51–68 dB(A) depending on speed; recirculating mode is slightly quieter.

6. Can I control the hood from a compatible Falmec induction hob?
   Yes—if your hob supports Falmec’s Dialogue System, you can synchronize controls for auto-extraction.

7. What maintenance is required for the motor unit?
   Periodically dust the motor inlet and ensure the ductwork is clear; refer to motor datasheet for service intervals.

8. Does the hood work on 50 Hz and 60 Hz power supplies?
   Yes—standard voltage: 220–240 V, frequency: 50/60 Hz.

9. What warranty does Falmec offer?
   Standard 2-year manufacturer warranty; extended plans available through authorized dealers.

.
