Falmec QUANTUM PRO 84 Worktop Hood – 84 cm (Black Glass-Ceramic, 600 m³/h)
Premium flush-mounted worktop hood featuring Flex Surface “üap” pop-up extraction and a brushless motor. Offers quiet 495 m³/h net airflow (I.E.C.), Automode, and versatile extracting or filtering operation—all in a sleek black glossy glass-ceramic finish.

🏷️ Product Title & SKU

• QUANTUM PRO 84 – Worktop Hood, 84 cm, Black Glass-Ceramic, 600 m³/h
  • EAN / SKU: 8034122900339

🔎 Overview

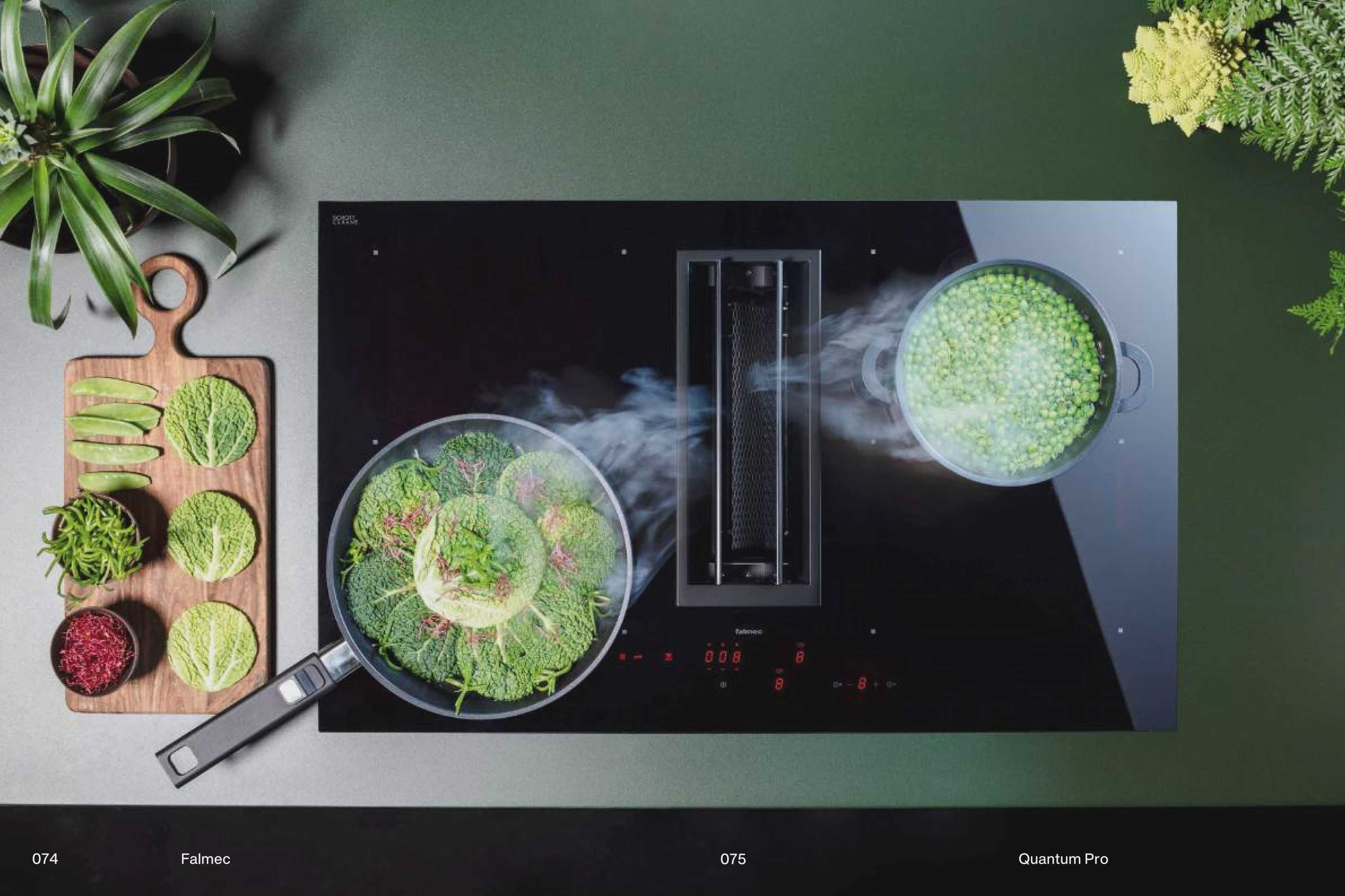

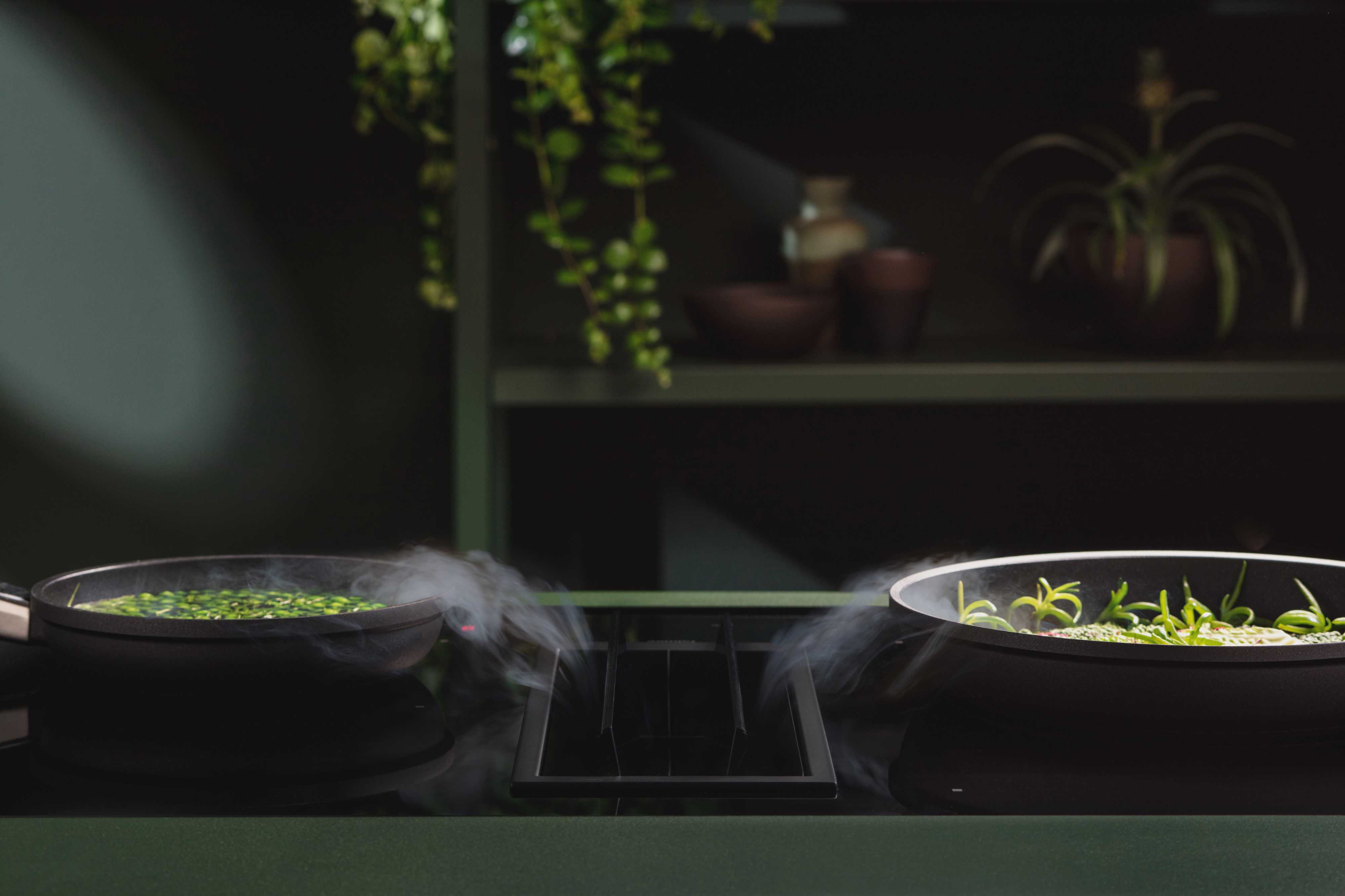

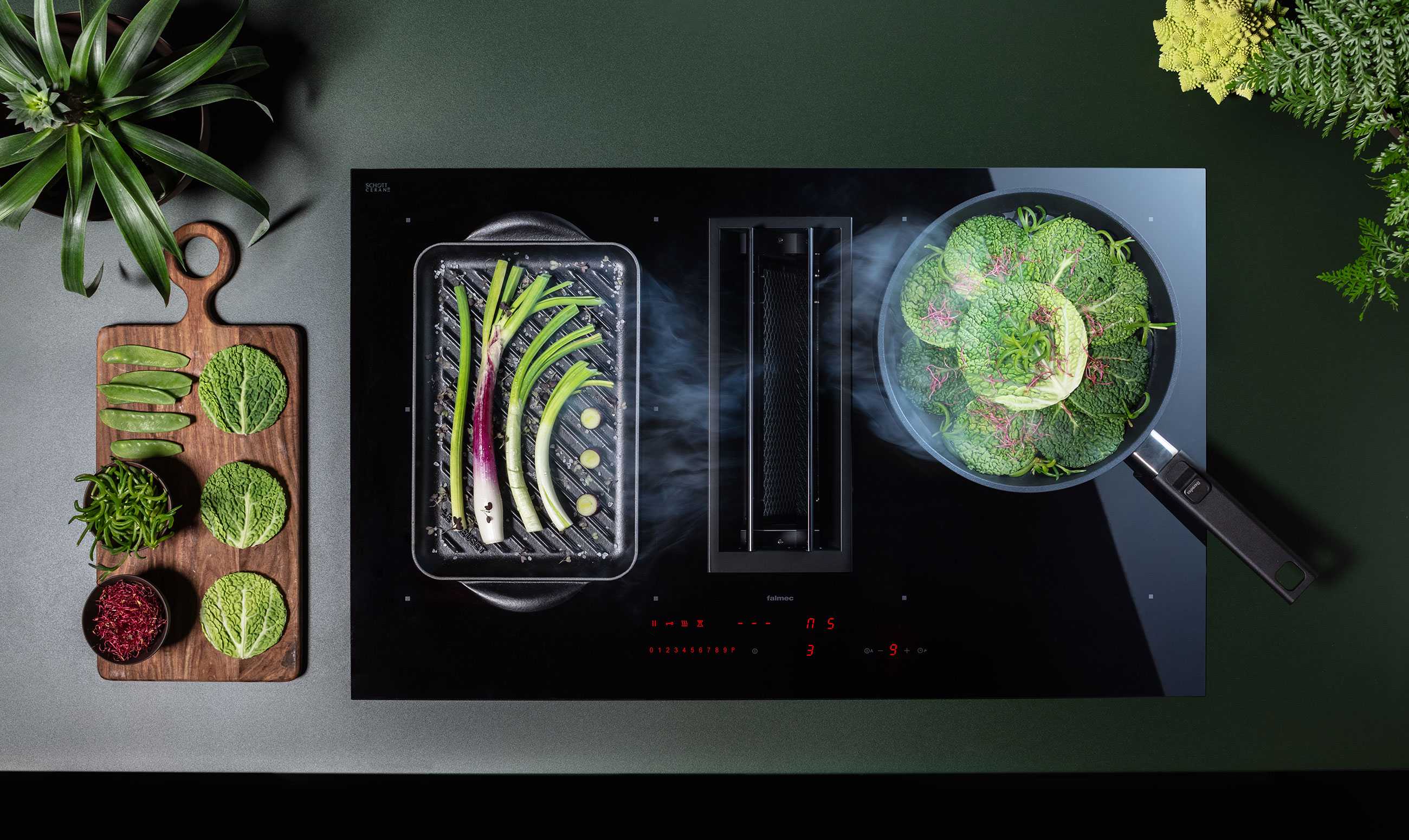

The QUANTUM PRO 84 integrates an 84 cm induction cooktop and a pop-up downdraft extractor into a single unit. Key highlights include:

• Flex Surface “üap” Technology: Motorized “üap” extractor rises when activated (to 210 mm above the worktop) and retracts flush when idle—maintaining a seamless cooking surface.

• Brushless Motor (600 m³/h): Delivers a maximum 495 m³/h net airflow (I.E.C. 61591) at 64 dB(A) (max), with four speeds plus Boost (Speed 10 = 495 m³/h).

• Automode: Extraction speed automatically adjusts to cooking power, ensuring optimal air removal without manual intervention.

• Touch Slider Controls: Single “Touch Slider” panel manages cooking and extraction (9 cooking levels + Boost).

• Cooking Functions: Includes Timer per zone, Recall, Keep Warm (44 °C), Automatic Pot Detection, Safety Lock, Pause, and Double Bridge.

• Filtration & Ducting:

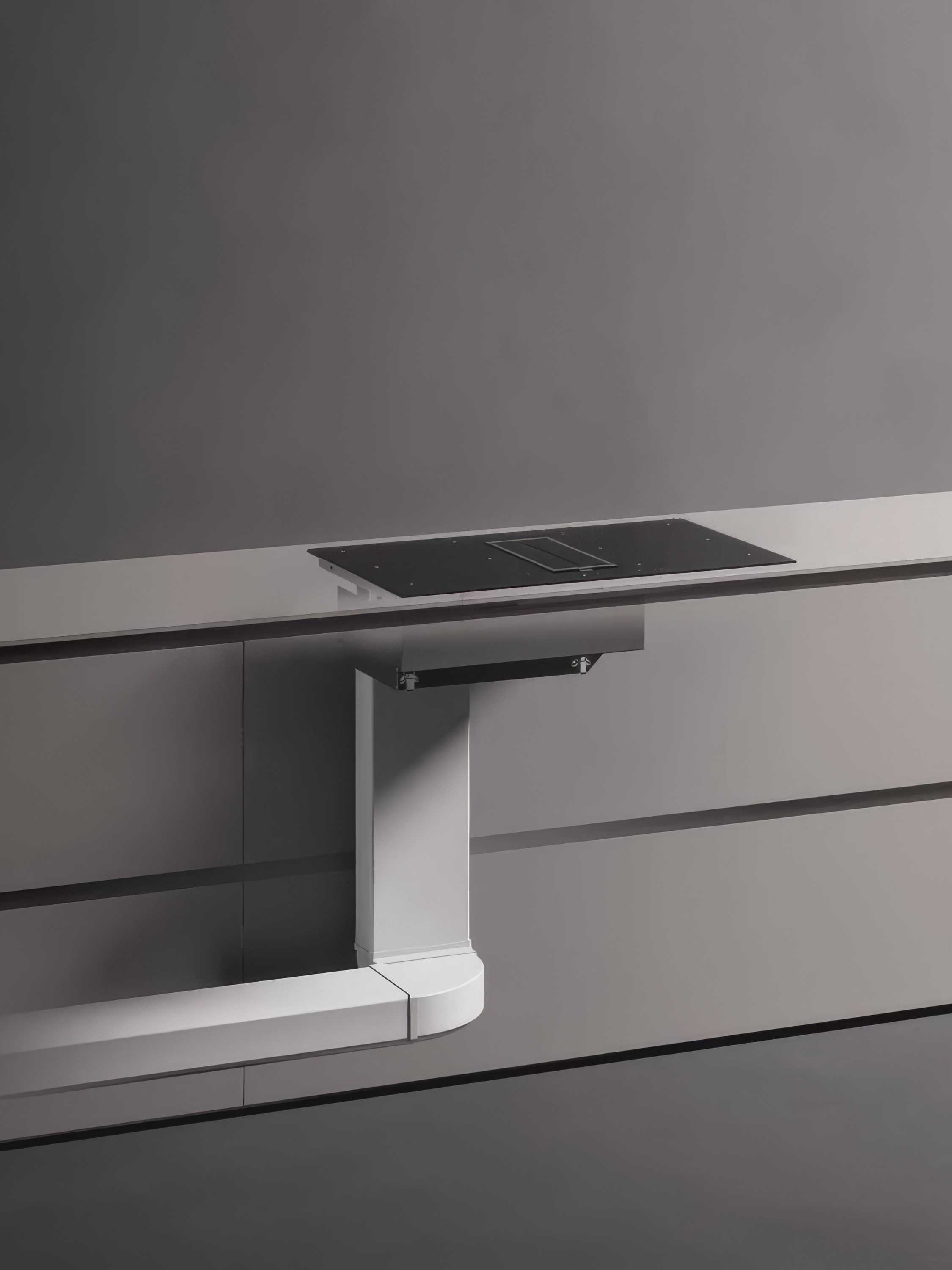

  • Extracting Mode: Connect to external duct or Falmec remote motor (e.g., KACL.782 for 800 m³/h) via standard 220 × 90 mm outlet.

  • Filtering Mode: Use with optional Carbon.Zeo under-base filter kits (KACL.930, KACL.931) or Slim Carbon filter (KACL.951, KACL.952) to recycle clean air.

• Worktop Power Management: Induction cooking capacity ranges from 2.8 kW to 7.4 kW (total max consumption 7 560 W).

• Sleek Black Glass-Ceramic: Blends into modern kitchens; pop-up extractor remains hidden until needed.

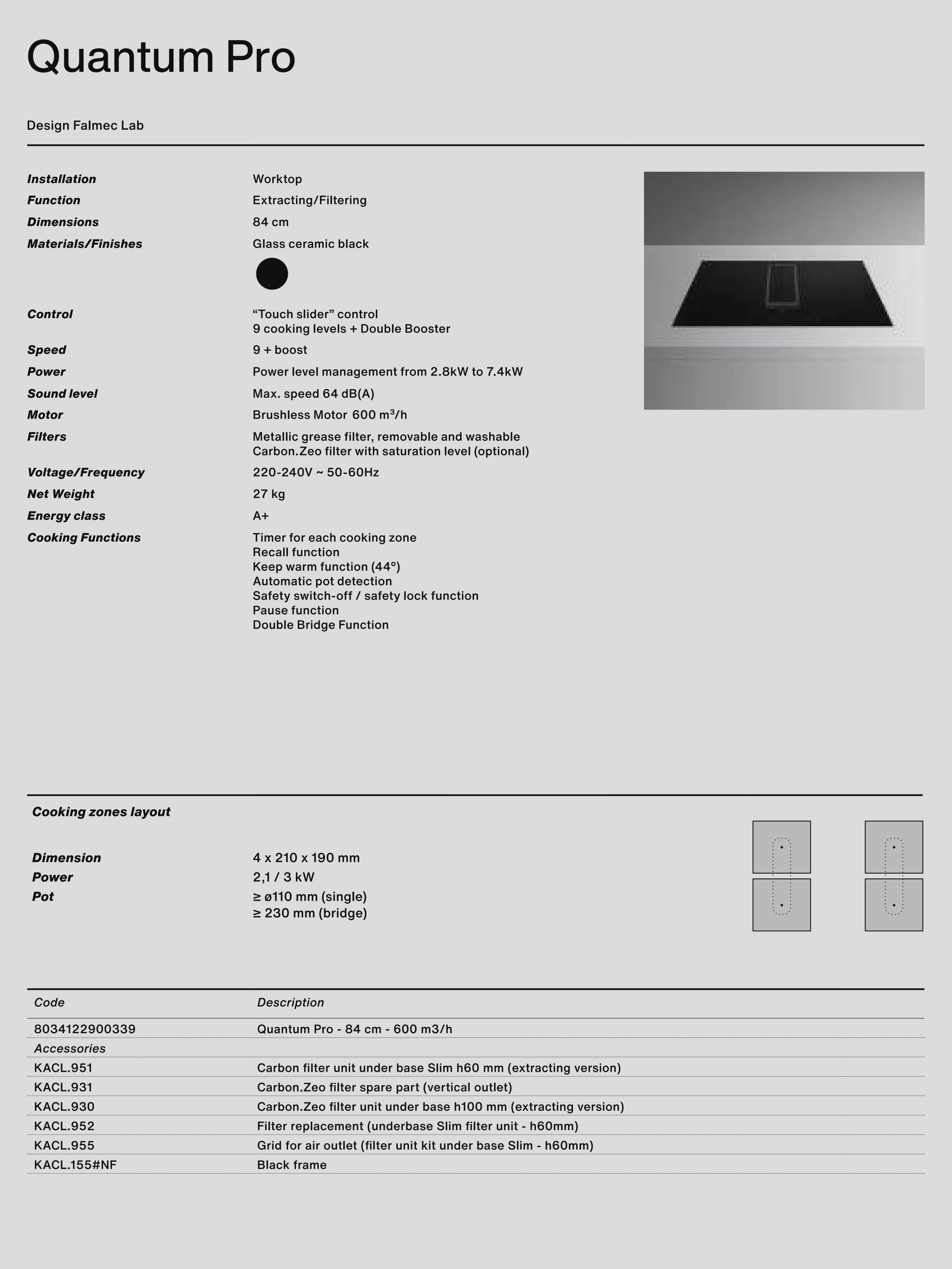

📐 Technical Specifications

Note: All performance data (airflow, noise, pressure, motor power) are measured in accordance with I.E.C. 61591 and I.E.C. 60704-2-13 standards.

🧰 What’s Included

• 1 × QUANTUM PRO 84 Hood Body (84 cm, Black Glass-Ceramic with “üap” pop-up module)

• 1 × Metallic Grease Filter (removable, dishwasher-safe; includes liquid collection tray)

• 1 × “Touch Slider” Control Module (pre-installed)

• 1 × Remote Control (batteries included)

• 1 × Installation Bracket Kit (mounting plates, screws, spacers for both over-top and flush installations)

• 1 × User & Installation Manual (cut-out templates, wiring diagrams, dimensions, maintenance instructions)

Note: Motor kits (e.g., KACL.1026 Silencer Kit + motor) and Carbon.Zeo filter units (KACL.930, KACL.931, KACL.951, KACL.952) are not included and must be ordered separately.

💡 Features & Benefits

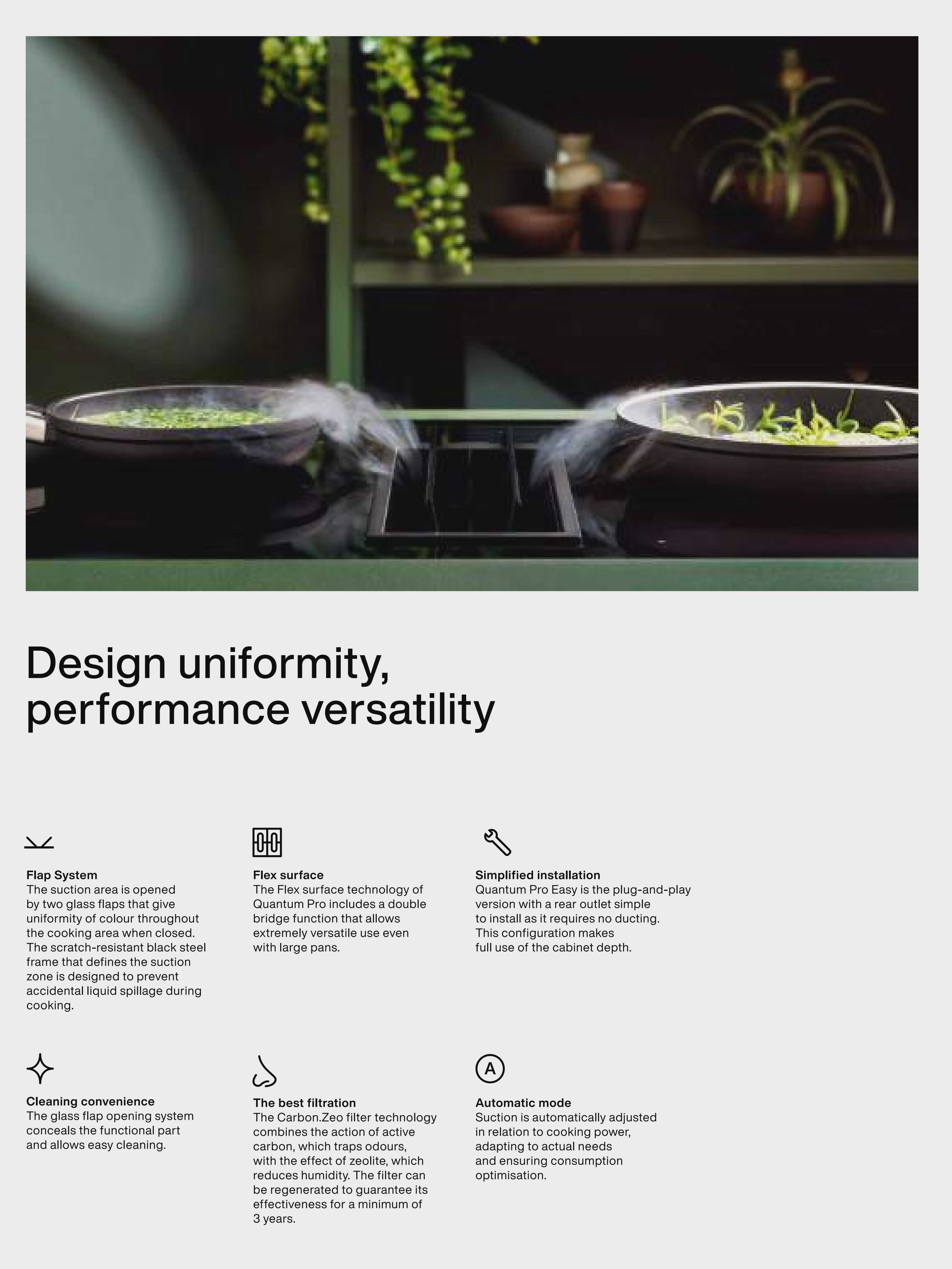

1. Flex Surface “üap” Pop-Up Extraction

   • The motorized extractor module raises to 210 mm when activated, capturing steam and odors directly at the surface. Retracts flush when not in use for an uninterrupted cooktop.

2. Brushless Motor Performance

   • Net 495 m³/h airflow (I.E.C.) with 64 dB(A) maximum noise (Speed 9). Offers four speeds plus Boost (495 m³/h @ 69 dB(A)). The brushless design ensures smooth, quiet, and durable operation.

3. Automode & Touch Slider Controls

   • Automode automatically adjusts extraction speed to cooking power level.

   • Touch Slider interface provides tactile, intuitive control of both cooking zones and extractor speeds.

4. Advanced Cooking Functions

   • Timer & Recall: Set individual timers for each zone; recall last settings.

   • Keep Warm (44 °C): Maintains food temperature.

   • Automatic Pot Detection: Hot-surface sensing adjusts induction output.

   • Safety Lock & Pause: Prevents accidental changes; pause cooking or extraction at any time.

   • Double Bridge: Link two adjacent cooking zones for larger cookware.

5. Flexible Filtration & Ducting

   • Extracting Mode: Connects via 220 × 90 mm outlet to external duct or remote motor.

   • Filtering Mode: Use Carbon.Zeo under-base filter kits (KACL.930/931 or Slim KACL.951/952) to purify air and recirculate—no duct required.

6. Premium Black Glass-Ceramic Finish

   • Sleek, fingerprint-resistant surface that conceals scratches and smudges when retracted.

   • Harmonizes with modern kitchen décor—when extractor is hidden, only the smooth cooktop surface remains visible.

7. Safety & Durability

   • Emptyable Liquid Collector & Anti-Spill Frame: Catches grease and spills, preventing mess underneath.

   • I.E.C. Certification: Ensures accurate performance metrics (airflow, noise, energy), guaranteeing reliable real-world operation.

8. Easy Maintenance

   • Dishwasher-Safe Grease Filter: Simple removal and reinstallation.

   • Regenerable Charcoal Filters: Carbon.Zeo filters regenerate in a household oven—sustainable and cost-effective.

❓ Frequently Asked Questions

1. How does the “üap” pop-up extraction work?
   – When activated, the extractor module elevates to 210 mm above the cooktop, drawing fumes across the entire 84 cm width. When turned off, it retracts flush into the worktop for a flat surface.

2. Can QUANTUM PRO 84 operate without ducting?

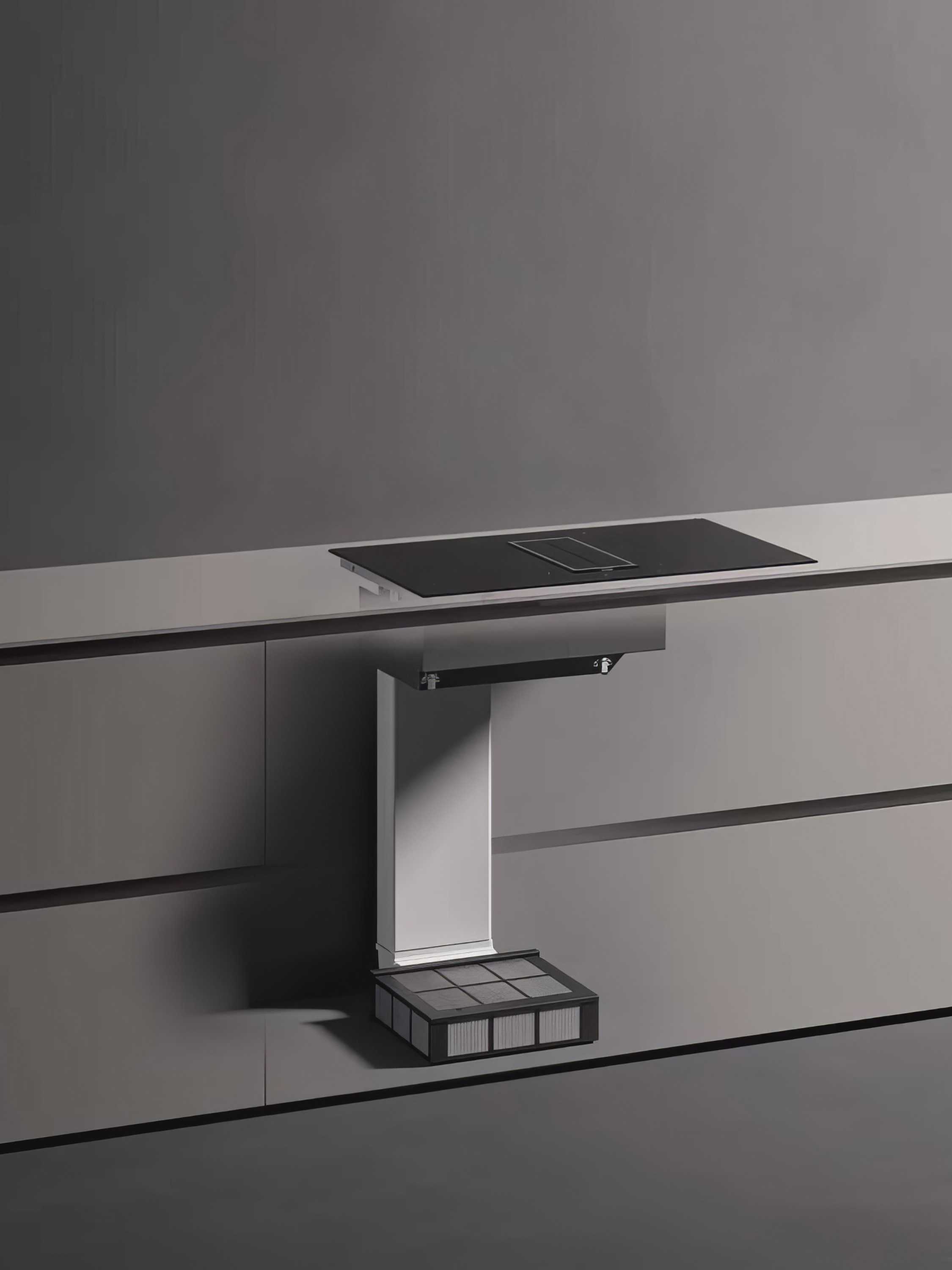

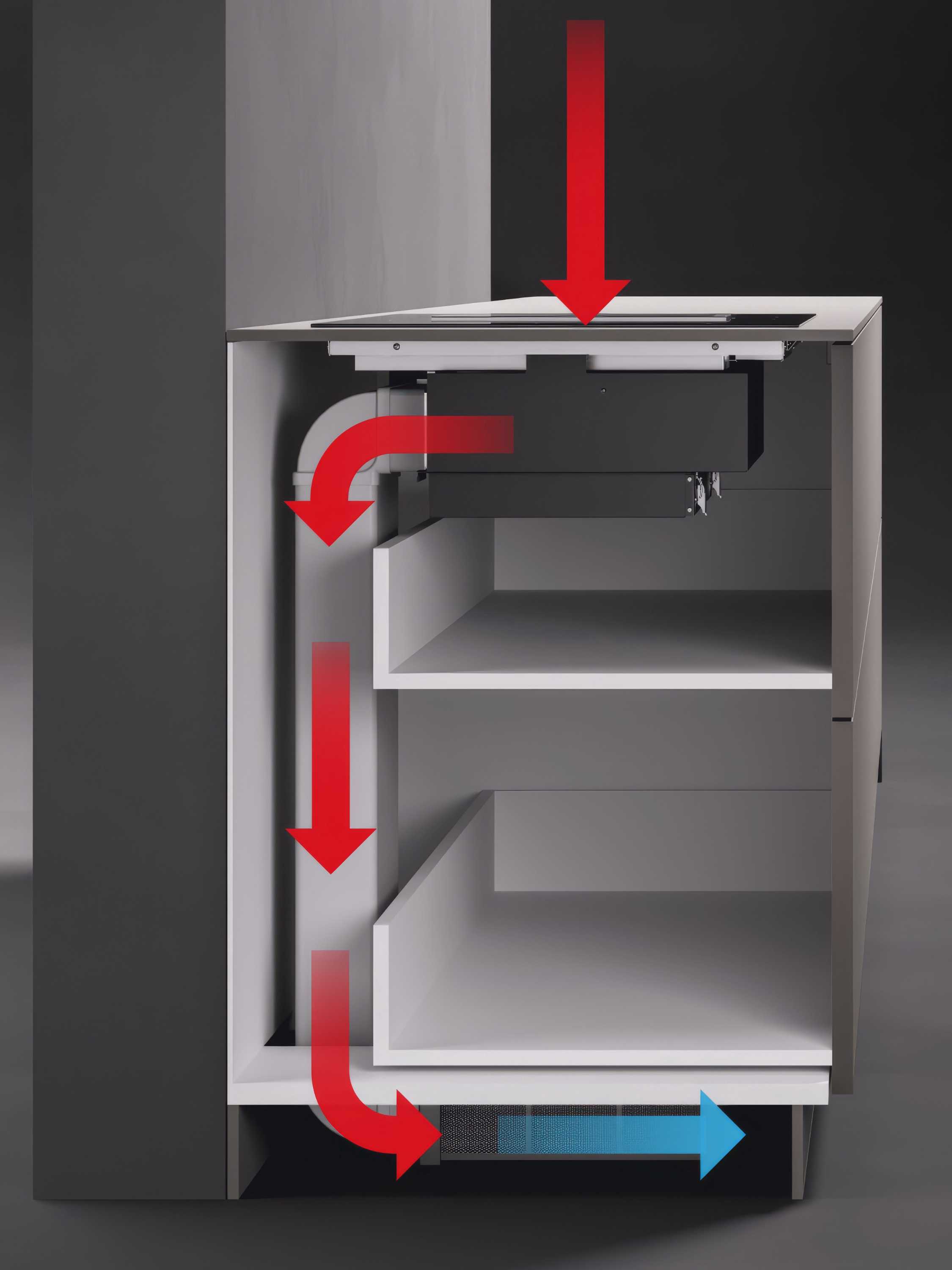

   – Yes. For recirculation mode, install a Carbon.Zeo under-base filter kit:
   • KACL.930: 100 mm high under-base Carbon.Zeo unit (vertical outlet)
   • KACL.931: Spare Carbon.Zeo for vertical outlet & under-base kit (100 mm)
   • KACL.951: Slim 60 mm high under-base Carbon.Zeo unit
   • KACL.952: Spare filter for Slim under-base kit (60 mm)
   • KACL.955: Grid for air outlet (filter kit under-base Slim – 60 mm)
   Once installed, the hood recirculates purified air back into the kitchen.

3. What are the exact installation cut-out dimensions?
   – Over-Top Installation: Requires a 704 × 380 mm rectangular cut-out in the countertop (see diagram on page 2).
   – Flush Installation: Requires a 704 × 754 mm cut-out (see diagram on page 2).
   – Minimum Surrounding Gap: ≥ 10 mm from edge of countertop to hood body.
   – Extractor Rise: Ensure minimum 210 mm clearance above countertop to allow the “üap” to fully extend.

4. What is the maximum height from the cooktop to the underside of adjacent cabinetry?
   – The “üap” extractor rises 210 mm above the worktop; ensure at least 150 cm between cooking surface and any overhead cabinets or range hoods.

5. How often should I clean the grease filter?
   – The “Touch Slider” display will show “CL” when the grease filter requires cleaning—typically every 2–4 weeks based on usage. Remove the filter and wash in a dishwasher or warm soapy water.

6. What are the power requirements and consumption?
   – Connection: 220–240 V ~ 50–60 Hz.
   – Maximum Consumption: 7 560 W (cooktop + extractor).
   – Motor Consumption (Speeds): 11 W / 32 W / 74 W / 131 W (Speeds 1/5/9/10).
   – Standby (Po/Ps): 0 W / 0.48 W (Energy Label per Reg. 65/2014).

7. Is the QUANTUM PRO 84 energy-efficient?
   – Yes. The brushless motor achieves Energy Class A+, with an AEC of 38.3 kWh/a and EEI 43.8 (see energy label). Fat filtration efficiency is 87 % (Class B); fluid dynamic efficiency is 33.1 (Class A).

8. What optional accessories are available?
   – KACL.1026: Silence Kit (noise-reducing silencer pipe for ducted installations).
   – Carbon.Zeo Under-Base Filter Kits:
   • KACL.930 / KACL.931 for 100 mm high kit (vertical outlet)
   • KACL.951 / KACL.952 for 60 mm high Slim kit
   • KACL.955: Grid for Slim under-base kit outlet
   – KACL.155#NF: Black frame accessory for 84 cm version.

9. What is the warranty?
   – 2 Years limited warranty covering manufacturing defects when installed per Falmec guidelines.

🏡 Lifestyle Integration & Pairing Ideas

• Urban Loft & Open-Plan Kitchens:
  The QUANTUM PRO 84’s flush-mounted “üap” extractor remains invisible until needed—perfect for minimalist, social cooking environments where sightlines matter.

• Professional Chef’s Home Setup:
  With 495 m³/h net extraction and 65 dB(A) max noise, pair with a Silence Kit (KACL.1026) to achieve quiet yet powerful removal of steam and odors during heavy-duty cooking (e.g., wok stir-fry, sous-vide).

• Condo & Apartment Retrofits:
  When external venting isn’t feasible, install a Carbon.Zeo under-base filter (KACL.950 series) to operate fully duct-free—ideal for high-rise living or rental properties.

• Scandinavian Minimalism:
  The black glossy glass-ceramic surface complements natural wood countertops and matte black accents. The hidden extractor preserves clean, unbroken lines—a hallmark of Nordic design.

• Family-Friendly Cooking:
  Safety features like Automatic Pot Detection, Safety Lock, and Residual Heat Indicators make QUANTUM PRO 84 a reliable choice for busy households with children.

• Eco-Conscious Renovations:
  With Energy Class A+ and regenerable charcoal filters, this unit supports green building certifications and reduces long-term filter costs.

👉 Upgrade your kitchen with the Falmec QUANTUM PRO 84 Worktop Hood (SKU 8034122900339) and select your preferred motor or filtration accessories for optimal performance!
