Falmec

---

🏷️ Product Titles & SKUs

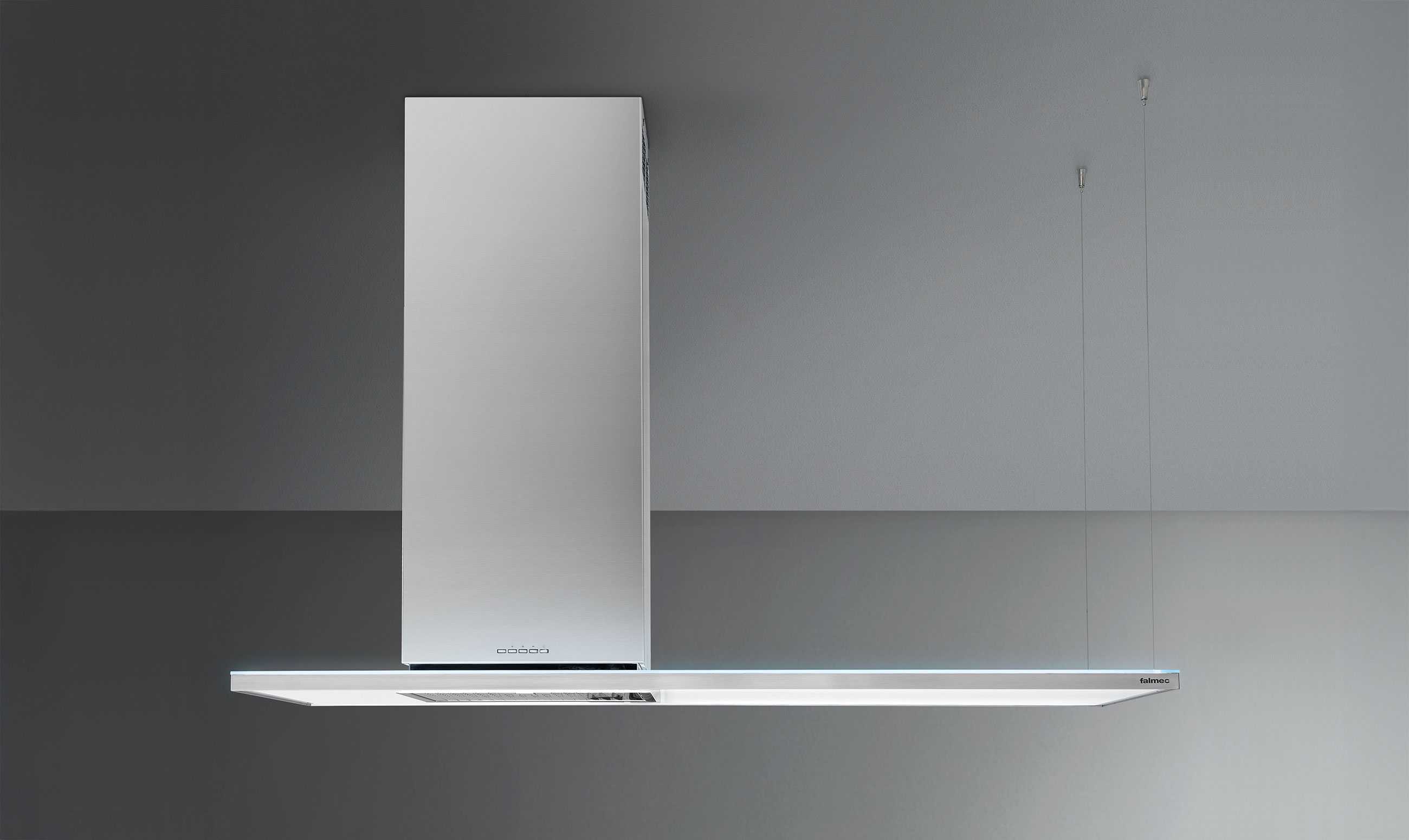

ZENITH NRS Island Hood 180 cm – Inox (AISI 304) / Glass
• SKU/EAN: 8034122354866

---

🔎 Product Overview

The Falmec ZENITH NRS Island Hood 180 cm combines Vittore Niolu’s Italian design flair with Falmec’s proprietary NRS (Noise Reduction System) technology to deliver ultra-quiet, high-capacity extraction. Constructed in Scotch-Brite AISI 304 stainless steel with a tempered-glass rim, this 180 cm island hood offers both extracting and recirculating functions (requires optional Carbon.Zeo filter KACL.1039 for filtering). At its heart sits an 800 m³/h brushless motor that achieves a maximum measured flow of 610 m³/h (IEC 61591) while operating at an impressively low 46 dB(A) at boost (IEC 60704-2-13). Integrated LED lighting (5 500 K) casts diffuse illumination across the cooktop. Electronic touch controls, a Dialogue System with maintenance alerts (“CL” for grease filter cleaning, “CA” for Carbon.Zeo filter regeneration), and an optional remote control (105080053) make operation intuitive.

---

📐 Technical Specifications

Attribute	Details
Version	Island – 180 cm – Inox – 800 m³/h
Design	Vittore Niolu
Collection	Silence – NRS
Materials / Finishes	Scotch-Brite Stainless Steel (AISI 304) + Tempered Glass
Function	Extracting / Filtering (Recirculation mode with optional Carbon.Zeo filter KACL.1039)
NRS Technology	Acoustic damping and vibration isolation for quieter operation
Max Motor Capacity	800 m³/h
Nominal Flow (IEC 61591)	610 m³/h
Noise Levels (IEC 60704-2-13)	Speed 1: 37 dB(A) │ Speed 2: 41 dB(A) │ Speed 3: 46 dB(A) │ Boost: 55 dB(A)
Lighting	LED (5 500 K diffuse illumination)
Controls	Electronic Touch Control │ Dialogue System (“CL” / “CA”) │ Remote Control (optional, 105080053)
Filters	• Metallic Grease Filter (removable, washable)
• Carbon.Zeo® Microtech Regenerable Filter (optional; code KACL.1039 for hoods produced from Sept. 2024)
Filter Regeneration	Bake Carbon.Zeo filter at 110 °C for 60 minutes (every 6–12 months)
Dimensions (W × D × H)	1 800 × 600 × 552 mm (hood body)
Min. Distance to Electric Hob	52 cm
Min. Distance to Gas Hob	60 cm
Max. Electrical Consumption	350 W
Voltage / Frequency	220–240 V ~ 50–60 Hz
Plug Type	Shuko (EU)
Weight (Net / Gross)	32 kg / 38 kg
Volume	0.42 m³
Packaging Dimensions (L × H × D)	1 070 × 452 × 870 mm
Energy Class (EC 65/2014)	C (AEC 103.3 kWh/a, EEI 80)
Fluid Dynamic Efficiency (FDE)	28.9 (Class A)
Light Efficiency (LE)	6.8 (Class F)
Grease Filtration Efficiency (GFE)	76 % (Class C)
Operational Flow Rates	Qmin 220 m³/h │ Qmax 375 m³/h │ Qboost 610 m³/h
Sound Power Levels (SPE)	SPEmin 37 dB(A) │ SPEmax 46 dB(A) │ SPEboost 55 dB(A)
Lighting Power (WL)	76 W
Average Illumination (Emiddle)	519 lux at cooking surface
Lwa (SPEmax) Sound Pressure	46 dB(A)
Best Efficiency Point (Qbep / Pbep / Wbep)	369 m³/h / 369 Pa / 131 W
Country of Origin	Italy
Warranty	2 Years

---

🧰 What’s Included

1 × Zenith NRS Island Hood Body (180 cm Inox, 800 m³/h)
• Scotch-Brite AISI 304 stainless-steel canopy with tempered-glass edge
• Pre-mounted 800 m³/h brushless motor and NRS acoustic dampening system
• Integrated LED strip modules (5 500 K)
• Factory-installed electronic touch control panel and Dialogue System display
• Slide-in slot for Carbon.Zeo filter (KACL.1039; optional)

1 × Metallic Grease Filter
• Removable, dishwasher-safe aluminum mesh filter

1 × Installation & User Manual
• Ceil­ing-mount cut-out template, wiring diagram, control operation, and maintenance schedule

Note:

• Carbon.Zeo® Filter (KACL.1039): Required for recirculation-mode operation on units produced from September 2024 onward. Sold separately.

• Remote Control (105080053): Optional; enables wireless adjustment of fan speeds and dynamic lighting.

• Suspension Kit: Use Falmec KACL.144 for ceilings up to 3 400 mm if needed (sold separately).

• Hardwiring Required: Hood is supplied with a Shuko plug; professional installation to dedicated circuit recommended.

---

💡 Features & Benefits

• NRS (Noise Reduction System) Technology
  Advanced acoustic insulation and optimized motor mounting ensure whisper-quiet operation (37 dB(A) at Speed 1), perfect for open-plan living.

• High-Capacity Brushless Motor
  800 m³/h nominal capacity with 610 m³/h measured efficiency (IEC 61591). Delivers robust extraction of cooking vapors while maintaining low noise (up to 55 dB(A) on boost).

• Circle.Tech® Perimeter Suction
  Edge-to-edge extraction removes smoke and odors uniformly, eliminating dead zones and preserving a sleek, minimalist canopy profile.

• Dynamic LED Lighting
  Diffuse 5 500 K illumination comfortably lights the cooktop. Rated 76 W (WL) with average output of 519 lux. From January 2025 onward, lighting becomes fully dimmable via controls or remote.

• Dual-Stage Filtration
  Combines a washable metallic grease filter with an optional regenerable Carbon.Zeo® Microtech filter (KACL.1039) to trap grease and neutralize odors—bake-cleanable to restore performance.

• Energy-Efficient Design
  Class C energy rating (AEC 103.3 kWh/a, EEI 80). Fluid dynamic efficiency Class A (FDE 28.9) ensures minimal energy consumption for optimal airflow.

• Italian Craftsmanship & Durability
  Scotch-Brite AISI 304 stainless-steel finish resists fingerprints and corrosion. Manufactured to Falmec’s exacting standards in Italy.

• Intuitive Touch Control & Dialogue System
  Easy-to-use capacitive interface combined with on-screen “CL” (clean grease) and “CA” (regenerate Carbon.Zeo) prompts keep maintenance simple.

---

❓ Frequently Asked Questions

Q1: Can the Zenith NRS be ducted externally?

• A1: Yes. Zenith NRS supports both extracting (external duct) and filtering (recirculation) modes. For recirculation, add Carbon.Zeo® filter KACL.1039 (available from Sept. 2024).

Q2: How do I regenerate the Carbon.Zeo® filter?

• A2: Remove filter and bake in a domestic oven at 110 °C for 60 minutes every 6–12 months. Up to eight regeneration cycles (approximately three years of use).

Q3: What is the energy efficiency rating?

• A3: Class C (AEC 103.3 kWh/a, EEI 80). Fluid dynamic efficiency Class A, light efficiency Class F, grease filtration efficiency Class C.

Q4: What are the clearance requirements?

• A4: Minimum 52 cm above electric hobs; minimum 60 cm above gas hobs. Always follow local building codes.

Q5: What noise levels can I expect?

• A5:
  • Speed 1: 37 dB(A)
  • Speed 2: 41 dB(A)
  • Speed 3: 46 dB(A)
  • Boost: 55 dB(A)

Ideal for open-plan homes, where minimal noise is crucial.

Q6: Are replacement parts available?

• A6: Yes. Carbon.Zeo® filters (KACL.1039), remote control (105080053), and suspension cables (KACL.144) can be ordered from Falmec or authorized dealers.

Q7: How do I clean stainless-steel and glass surfaces?

• A7: Wipe with a soft, damp microfiber cloth and mild detergent. Avoid abrasive cleaners or steel wool to prevent scratching.

Q8: Does the hood include a plug?

• A8: Yes; it comes with a Shuko plug. Professional installation to a dedicated circuit is recommended for safety.

Q9: What warranty coverage applies?

• A9: 2-year limited warranty on materials and workmanship when installed per Falmec guidelines.

---

🏡 Lifestyle Integration & Pairing Ideas

Modern Open-Plan Entertaining
Suspend the Zenith NRS 180 cm Inox above a large marble or quartz island to maintain unobstructed sightlines. The stainless-steel finish complements professional-grade appliances and light oak cabinetry. Use Speed 1 (37 dB(A)) during casual gatherings; increase to boost (55 dB(A)) to clear intense cooking vapors instantly.

Contemporary Industrial Lofts
In loft conversions with exposed beams, mount the Black-Glass–trim version (if available) using KACL.144 cables to achieve a floating effect under 3 m+ ceilings. Pair with concrete countertops and black-metal accents for an edgy, urban aesthetic.

Chef’s Culinary Studios
In test kitchens or demonstration spaces, leverage the hood’s dual extraction/filtering capability. During filming, set LED to 5 600 K for crisp task lighting; switch to 2 700 K for evening events. The low 37 dB(A) baseline ensures clear audio capture when recording cooking tutorials.

Eco-Friendly Tiny Apartments
For compact homes without ducting options, Zenith NRS recirculation mode (with Carbon.Zeo) offers professional ventilation without exterior vents. Its regenerable filters and energy-efficient motor suit eco-conscious lifestyles, while the 5 500 K LED simulates daylight in north-facing kitchens.

Luxury Outdoor Kitchens (Covered Patios)
Use in covered alfresco cooking areas where external ducting is impractical. The Inox canopy resists outdoor humidity, while the LED lighting extends usability into the evening. Add decorative potted herbs or hanging plants around the hood to blend indoor and outdoor elements.

---

👉 Elevate your kitchen experience—select the Falmec Zenith NRS Island Hood 180 cm (8034122354866, Inox) and optionally add Carbon.Zeo® filter KACL.1039, remote control 105080053, and suspension kit KACL.144 for a fully tailored, high-performance ventilation solution.
